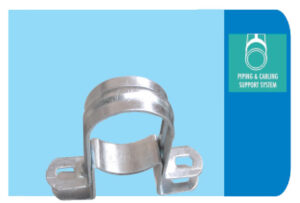

Base U Clamp

Base U Clamp

IntelloTech Base U clamps provide support to Pipes and cables. These clamps are useful Where frequent adjustments have to be Made.They are especially used in applications where the installations are complicated and tedious. The reason for these clamps being specially suited for complex installations is that they can be adjusted very easily to the varying pipe diameter and any surface variation.

    Benifits of Base U Clamp’s

  • Two piece clamp allows adjustment
  • Easy to install and convenient
  • Grips full circumference of the Pipe
  • Distance from wall disperses heat which prevents blackening of wall and keeps the wall neat and Clean.
  • Product Material : Mild steel
  • Material will be available on request SS-304 and SS-316

Dimension Chart

Reference Clamp Size Hole Size for Fastener Width x Thickness
mm inch mm mm
CBU-101 15 1/2″ 6 20 X 1.5
CBU-102 20 3/4″ 6 20 X 1.5
CBU-103 25 1” 6 20 X 1.5
CBU-104 32 11/4″ 6 20 X 1.5
CBU-105 40 11/2″ 6 20 X 1.5
CBU-106 50 2″ 6 20 X 1.5
CBU-107 65 21/2″ 6 20 X 1.5
CBU-108 80 3″ 6 20 X 1.5
CBU-109 100 4″ 6 20 X 1.5

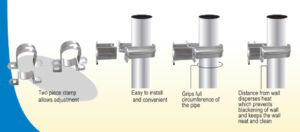

Installation Picture

Application Area

  • Plumbing
  • Sanitation
  • Fire Fighting
  • Electric and Power lines
  • Air Conditioning
  • Gas,oil, Chimney Irrigation areas
  • Solar plants
  • Parkings
  • Factories and Plants
  • Households
  • Housing complexes
  • Hospitals
  • Shopping Malls
  • Pharmaceuticals
  • Gardens and Landscapes
